Line Tracer

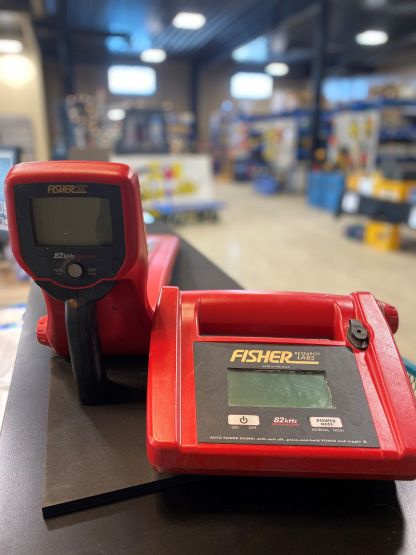

The TW-7700 is an active locating line tracer.
Can be used for:
- Gas lines (tracer wire)
- Electrical lines
- Non-plastic water lines
There are three methods of active locating that an operator can use to trace a utility:
- The conductive method is the most preferred method, since a strong transmitter signal is transmitted through the intended target.
- The inductive method is the easiest method to use, but may not yield the best results. When a direct connection is not available, but the operator has good knowledge of where one point of the utility may be, the operator can place the Transmitter over the utility making sure that the arrow on top of the transmitter is parallel to the path of the utility.
- The third method of active locating involves using the coupling clamp accessory. The coupling clamp is used when the utility is exposed, but a direct connection is not available. The clamp jaws are opened and placed around the utility. The clamp never makes a direct connection with the utility, that is, the utility can move freely with the clamp around it.
Transmitter Specifications:
Output Frequency: | 82.175 kHz |
Output Power: | 0.25 watt - 1 watt |
Conductive Tracing: | 2 to 3,000 ohms normal power-6dB |
Magnetic Strength: | 2 to 8,000 ohms high power-6dB |
Inductive Tracing: | 15 Vm2, normal power |
Magnetic Strength: | 25 Vm2, high power |
Battery Type: | Four D-cell batteries |
Battery Life: | 160 hrs (normal power mode) |
Weight, w/ batteries: | 3.73 lbs |
Receiver Specifications:
Make / Model: | Fisher TW7700 |
Depth Accuracy: | +1 inch per foot in nominal conditions |
Readout Units: | Inches or cm (factory preset) |
Left Guidance: | Audio: continuous tone = Left |
Right Guidance: | Audio: pulsed tone = Right |
Signal Strength: | 1. Digital Numeric Readout (0-99%) |
2. Bar Graph | |
Sensitivity Adjust: | Automatic |
LCD Backlight: | Included |
Battery Test: | 1. Automatic Low Battery alert |
2. Push button readout | |
Battery Type: | Six “C” cells |
Battery Life: | 80 hrs |
Weight: | 5.4 lbs |
Operating Temp: | -20°C to 60°C |
