Boom Lift Genie Z80 Articulating

Aerial Work Platforms, Articulated Boom Lifts

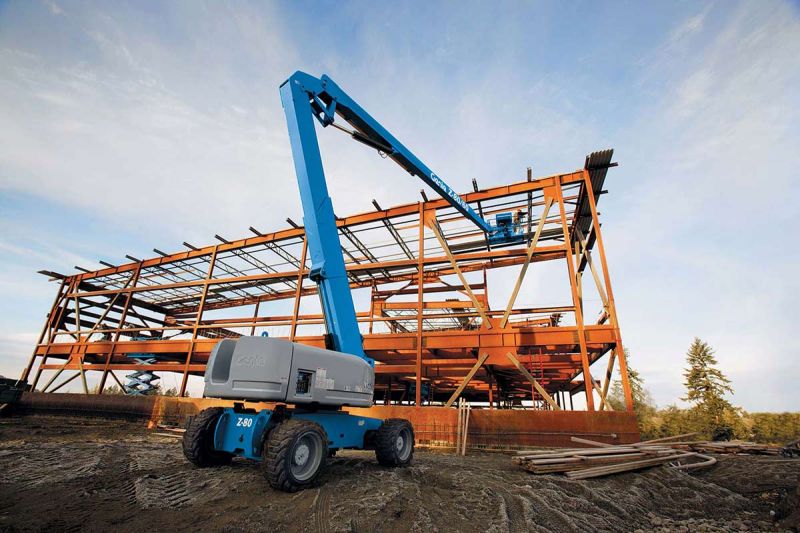

With outreach that’s second to none, the Genie® Z®-80/60 articulating boom lift delivers outstanding lifting versatility with up, out and over positioning capabilities — ideal for outdoor construction and industrial applications.

Measurements:

Working Height Max:	80 ft
Horizontal Reach Max:	60 ft
Platform Length:	2 ft 6 in
Platform Width:	6 ft
Height - stowed:	9 ft 10
Length - stowed:	37 ft
Width:	8 ft 2 in
Wheelbase:	9 ft 4 in
Ground Clearance:	12 in
Lift Capacity:	500 lbs

Productivity:

Platform Rotation:	160 degrees
Drive Speed - stowed:	4.83 km/hr
Drive Speed - stowed:	1.1 km/hr
Gradeability 2WD:	30%
Gradeability 4WD:	45%
Turntable Rotation:	360 continuous
Turntable Tailswing:	3 ft 10 in
Turning Radius:	See link below
Controls:	12 V DC
Tires:	18-625 NHS
Fuel Tank:	132 L
Weight:	36,000 lbs
