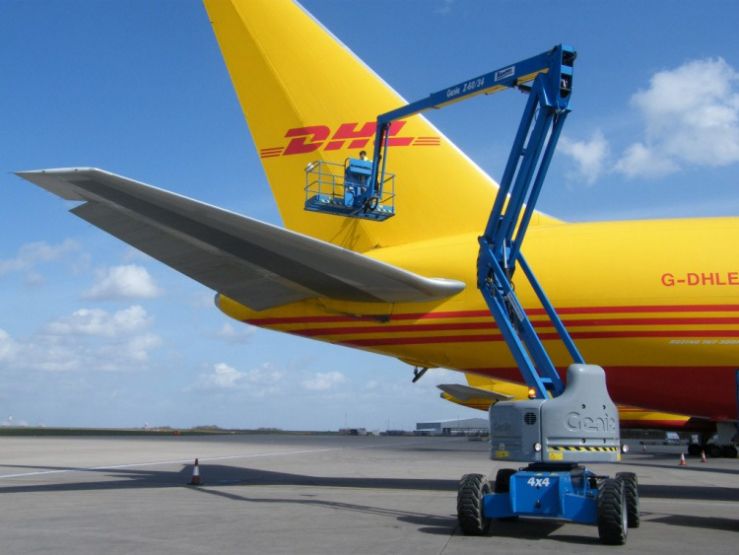

Boom Lift Genie Z60 Articulating
Boom Lift Genie Z60 Articulating

Ideal for outdoor construction and industrial applications, the Genie® Z®-60/40 articulating boom lift with capabilities provides lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none.

The 5-ft (1.52 m) jib features a 135° range of motion to accurately position workers


Max Working Height:60 ft
Horizontal Reach Max:36 ft 7 in
Platform Length:2 ft 6 in
Platform Width:6 ft
Height - stowed:8 ft 4 in
Length - stowed:26 ft 9 in
Width:8 ft 2 in
Wheelbase:8 ft 2 in
Ground Clearance:1 ft 1 in
Lift Capacity:500 lbs


Platform Rotation:160 Degrees
Drive speed - stowed:6.44 km/h
Drive speed - raised:1.09 km/h
Gradeability 4WD - stowed:45%
Turnable Rotation:355 Degrees Not continuous
Turnable Tailswing:1 ft 11 in
Turning Radius - inside:8 ft 3 in
Controls:24V DC Proportional
Tires:355/55D325, 14 Ply
Weight:17,100 lbs
Fuel Capacity:64.35 L
