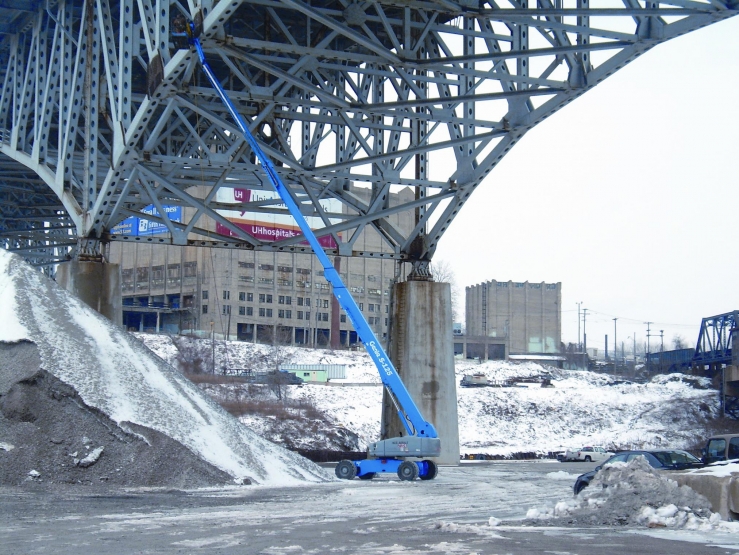

GenieSX-125 XC Telescopic Boom Lift

Aerial Work Platforms, Telescopic Boom Lifts

Perfect for heavy lifting in construction, bridge inspections and maintenance, stadium and sports arena, oil and gas, industrial, telecommunications and utility applications, the Genie® SX-125 XC™ telescopic boom works in more applications that require higher capacities thanks to its industry-leading dual lift capacity — 660-lb (300 kg)/1,000-lb (454 kg)**

Measurements

Working Height Max:	131 ft
Horizontal Reach Max:	80 ft
Platform Length:	2 ft 6 in
Platform Width:	6 ft
Height - stowed:	10 ft
Length - stowed:	46 ft 9 in
Width (axles retracted):	8 ft 2 in
Width (axles extended):	12 ft 11 in
Wheelbase:	13 ft 6 in
Ground Clearance:	15 in
Lift Capacity:	Restricted: 1100 lbs
	Unrestricted: 660 lbs

Productivity:

Platform Rotation:	160 degrees
Drive Speed - stowed:	4.9km/hr
Drive Speed - raised:	0.6km/hr
Gradeability - stowed:	40%
Turning Radius:	See Link Below
Controls:	12 V DC
Tires:	445D50/710 HD
Turntable Rotation:	360 continuous
Weight:	45,636 lbs
Fuel Tank:	151 litres
