Patron Heater E9

New Equipment, Heaters & Accessories

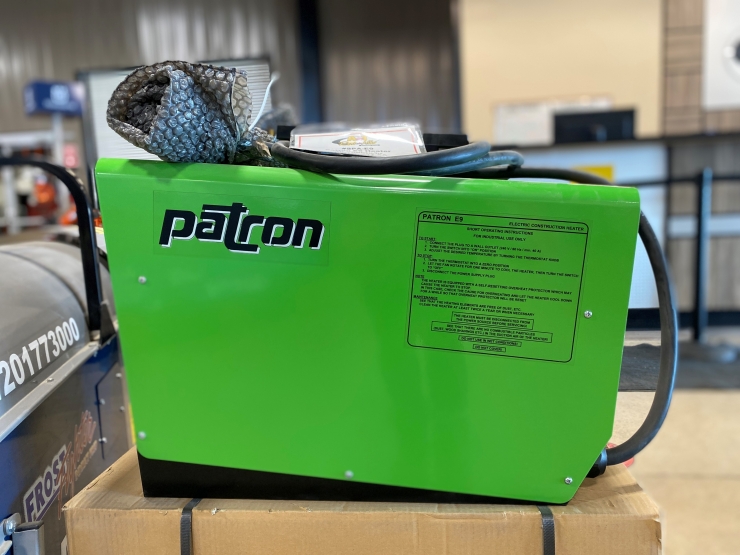

MODEL E9

The Patron E9 is a top seller which exceeds expectations on a regular basis. It can be used in the most demanding of environments and has proven its abilities in hundreds of applications. The E9 is a 240V unit and draws either 25 or 37.5 amps. This means it will run flawlessly off a stove receptacle. Make sure your receptacle is a NEMA 14-50P configuration, to ensure compatibility with our plug. The E9 produces a ton of heat, and disperses it in large areas with its 350 CFM fan.

Features:

For heating, drying and ventilating

Integrated ambient thermostat from 0°C to 37°C

Overheat protection at 40°C

Durable steel casing with powder coating

Stainless jacketed heating coils

Fast, high temperature rise with uni-directional fan

User-friendly and proven reliablility

UL/cUL Approved


Specifications:

Heat Output: 30,700 BTU/Hr

Voltage: 240 V

Wattage: 9,000 W

Amperage: 37.5 A
Airflow: 350 CFM
Actual Weight: 39.9 lbs
Power cord: 10 ft (8 AWG)
Dimensions: 23 in x 14 in x 18 in
Noise Level: 55 dB(A) 1m
Max Cable Length: 50-ft (8AWG, 3-wire, SOOW)

100-ft (6AWG, 3-wire, SOOW)

Plug Options:
1. NEMA 14-50P (Stove)

2. Twist Lock

3. Welder
