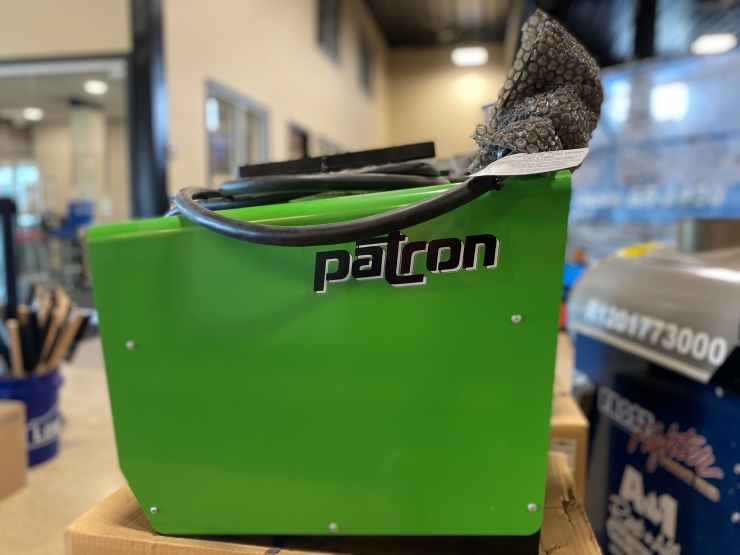

Patron Heater E6

New Equipment, Heaters & Accessories



MODEL E6

The Patron E6 is the newest member of the Patron electric family. Built with the same quality and ruggedness of all the other Patron heaters, it offers great opportunity for use in many applications. The E6 is a 240V unit and pulls 25 amps. This means it will run flawlessly off a regular clothing dryer outlet. Make sure your receptacle is a NEMA 14-30P or 14-50P, to ensure compatibility with our plug. The E6 produces a ton of heat, and disperses it in large areas.

Features:

For heating, drying and ventilating

Integrated ambient thermostat from 0°C to 37°C

Overheat protection at 40°C

Durable steel casing with powder coating

Stainless jacketed heating coils

Fast, high temperature rise with uni-directional fan

User-friendly and proven reliablility

UL/cUL Approved


Specifications:

Heat Output: 20,500 BTU/Hr
Dimensions: 20 x 12 x 17 in
Voltage: 240 V
Wattage: 6,000 W
Amperage: 25 A
Airflow: 250 CFM
Actual Weight: 32.9 lbs
Power cord: 10 ft (8 AWG)
Noise Level: 55 dB(A) 1m
Max Cable Length: 100 ft (8AWG, 3 Wire, SOOW)

Plug Options:
1. NEMA 14-30P (Dryer)

2. Twist Lock

3. Horizontal Pin Plug

4. Range Plug
